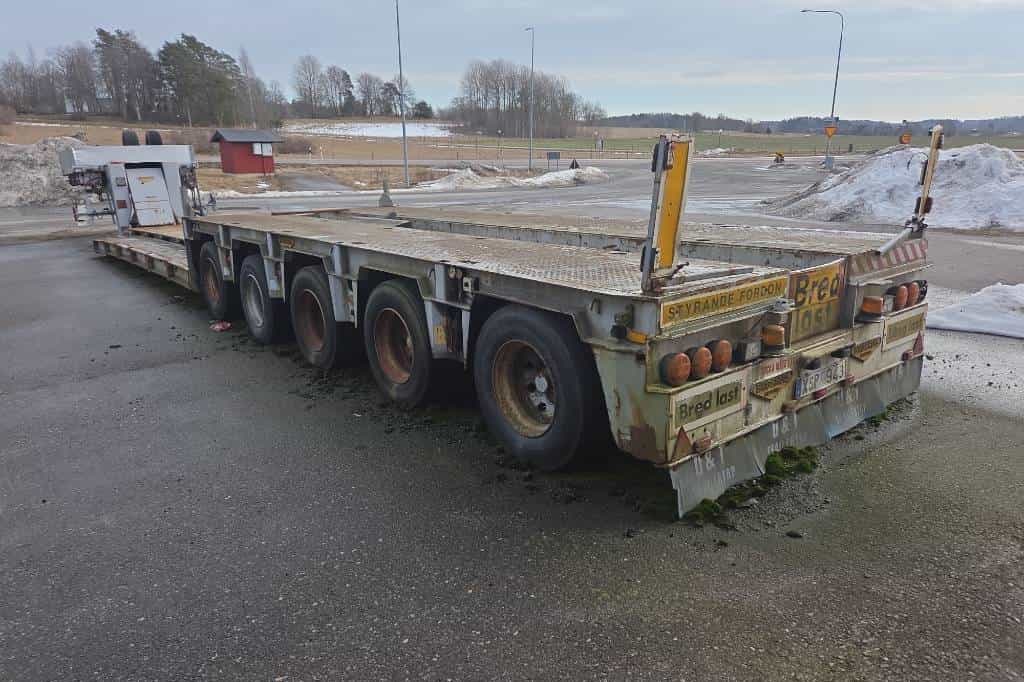

7DDC-101 Semitrailer 5 eller 7 axlar

Other Information

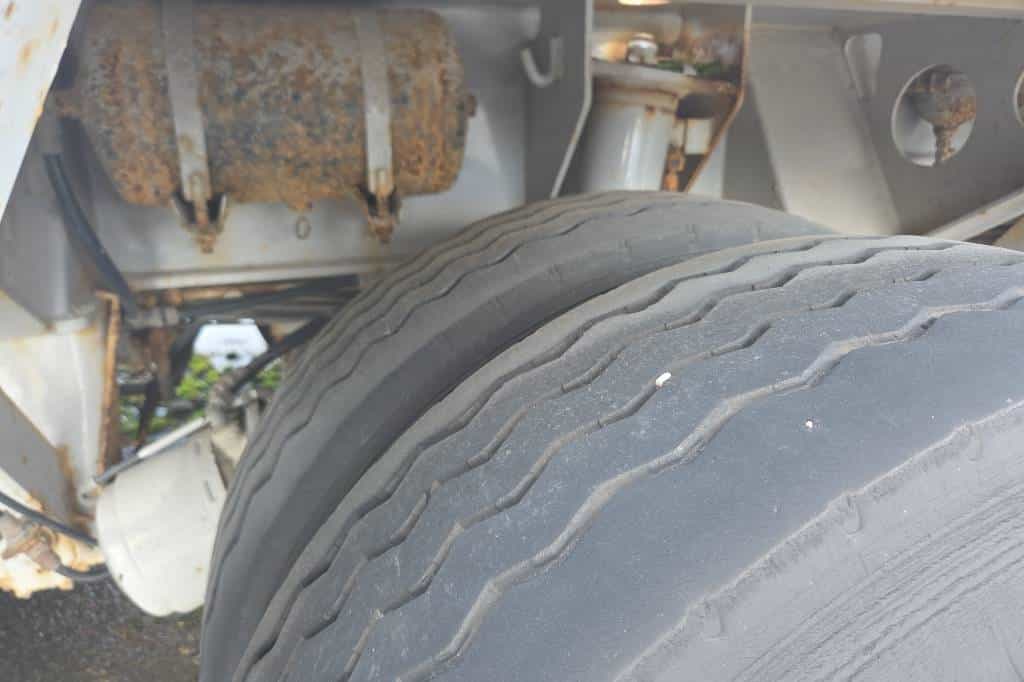

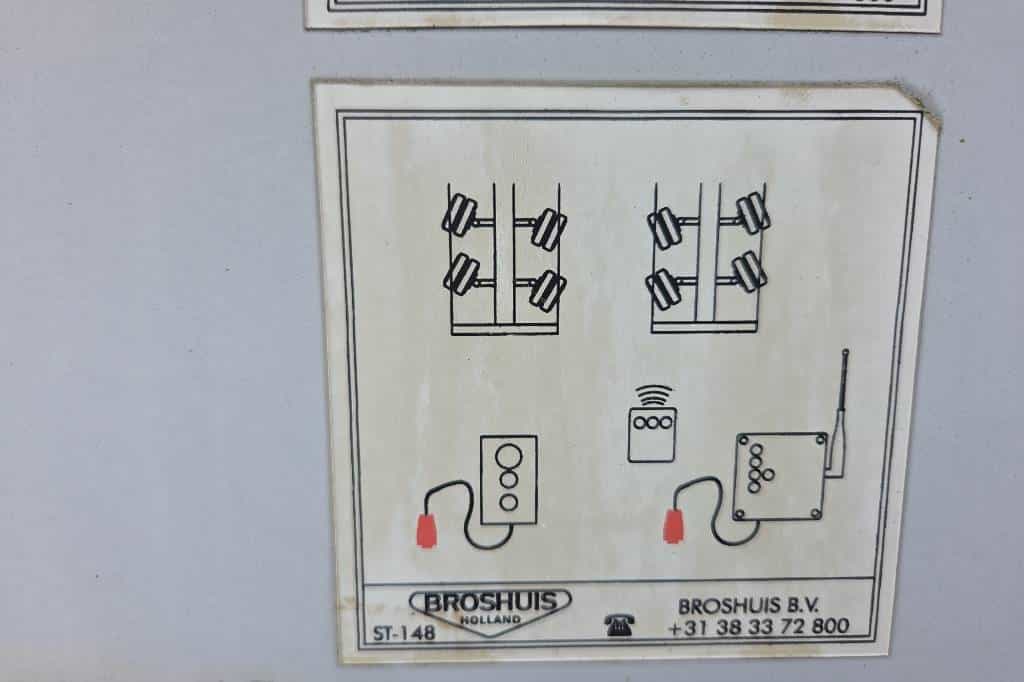

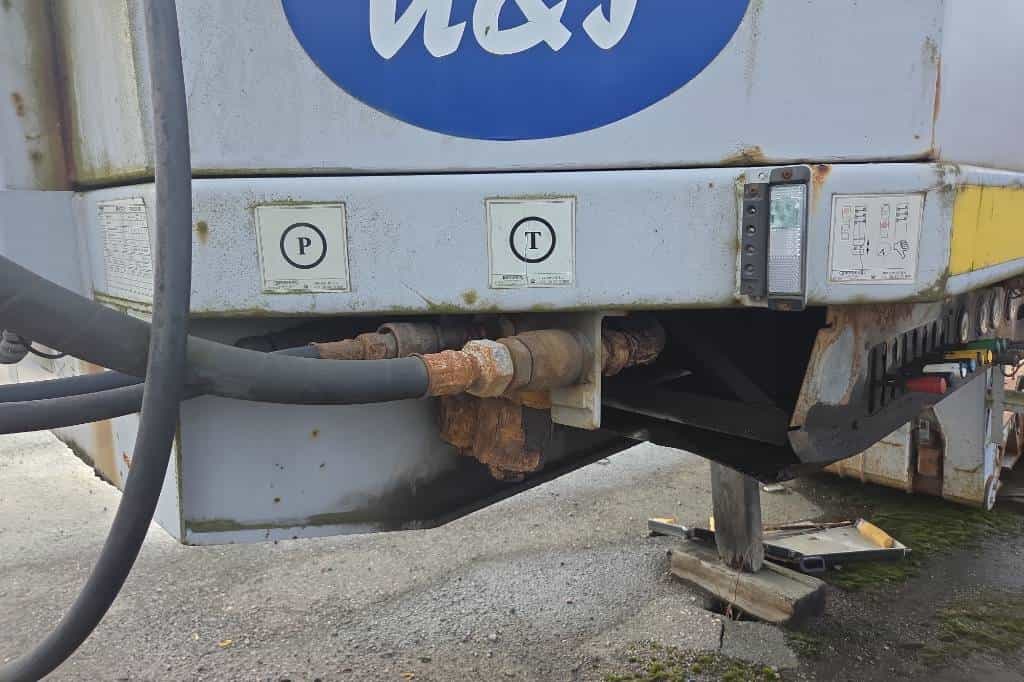

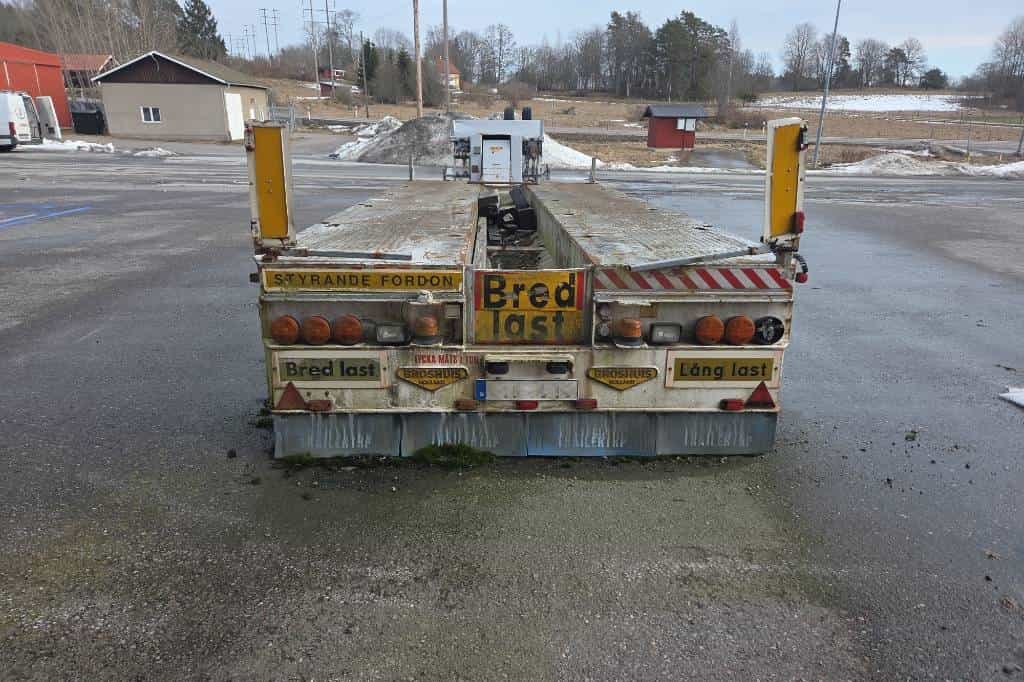

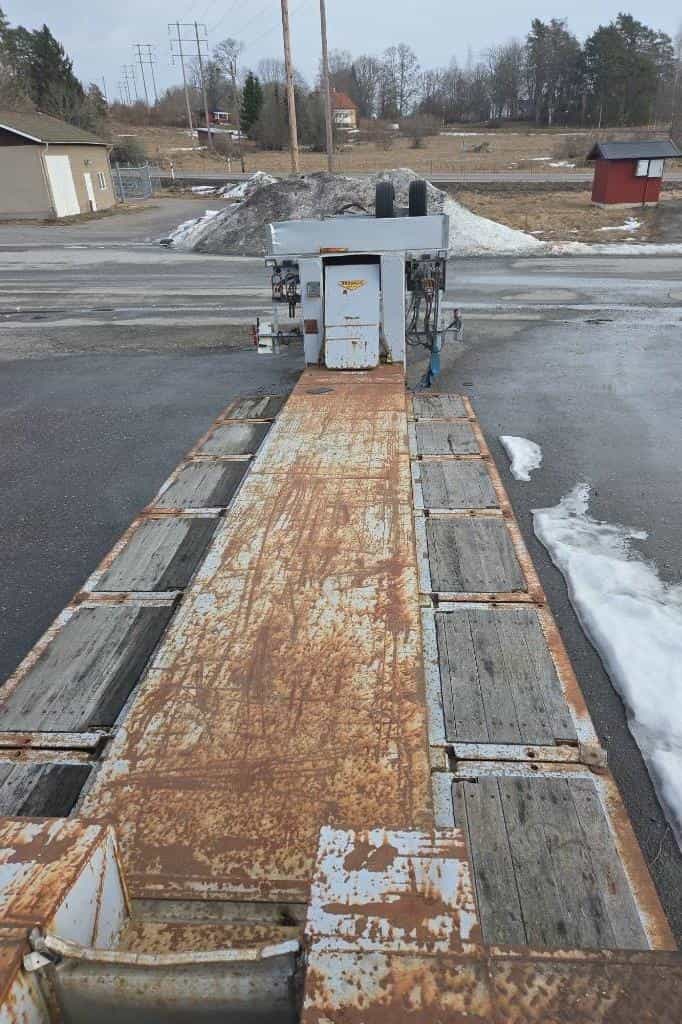

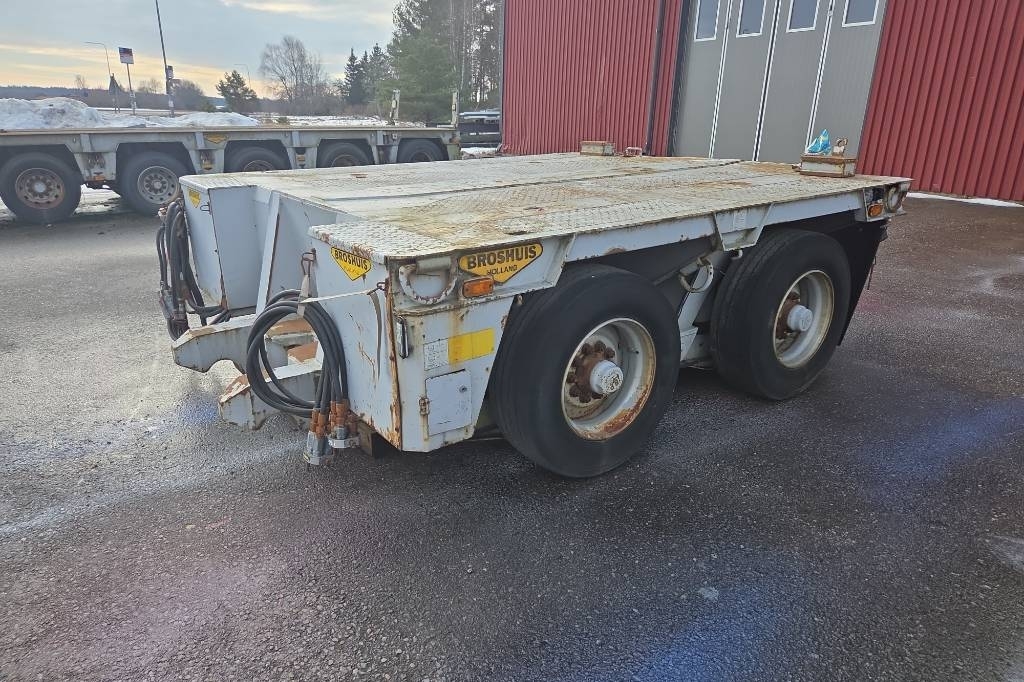

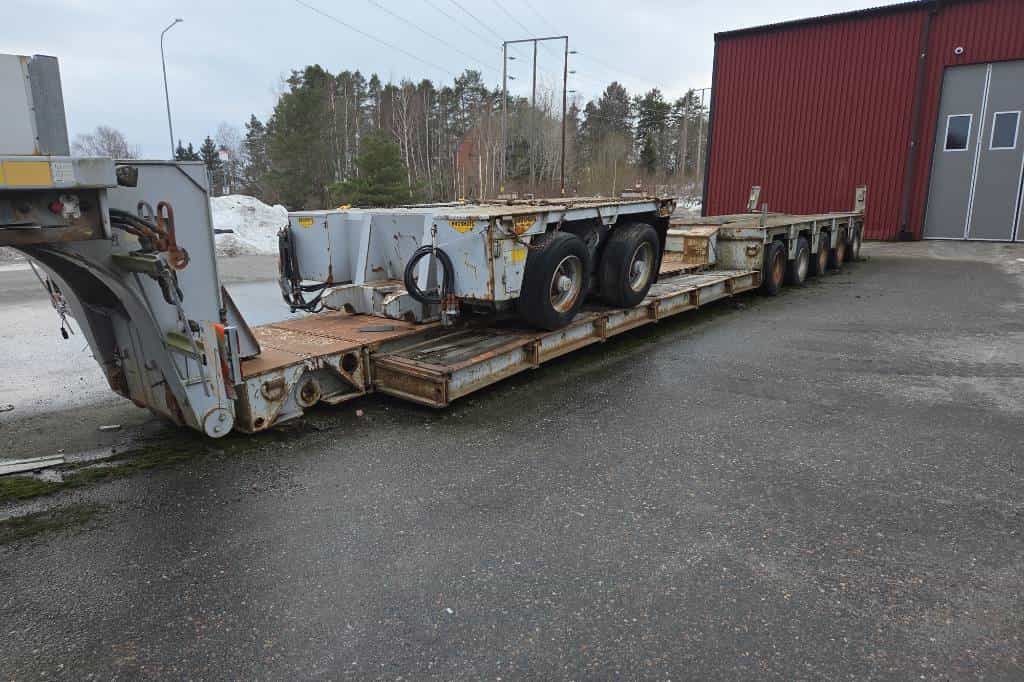

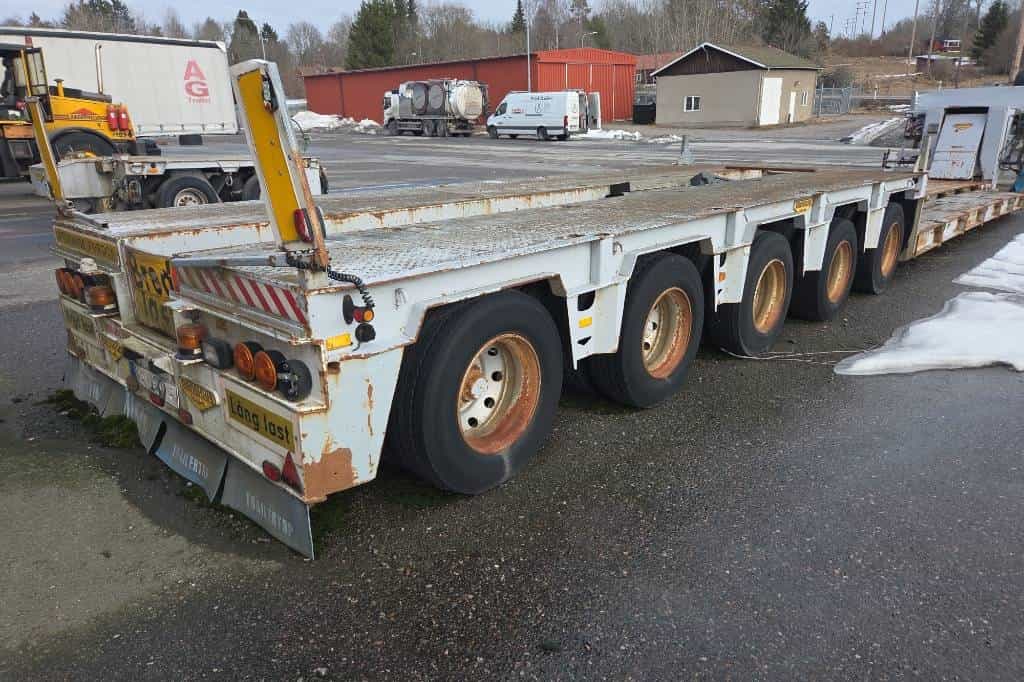

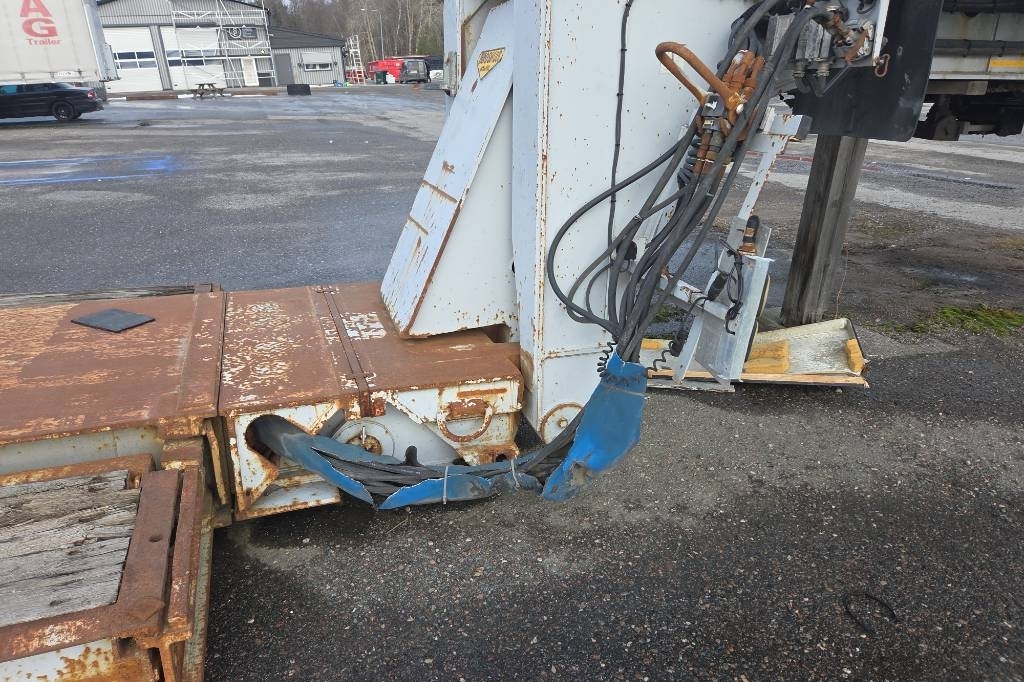

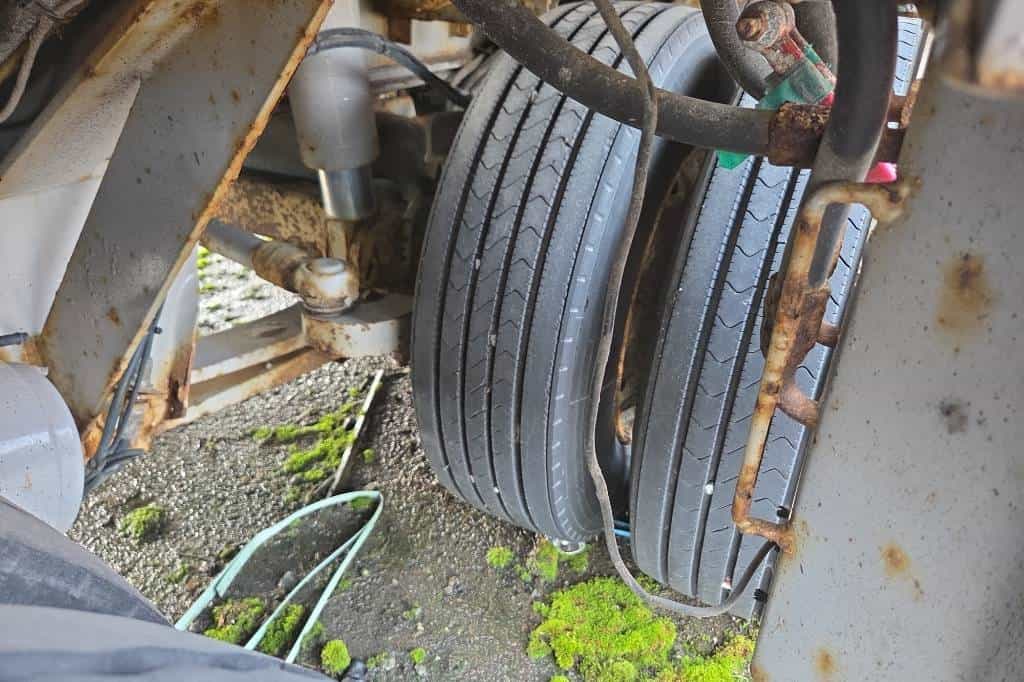

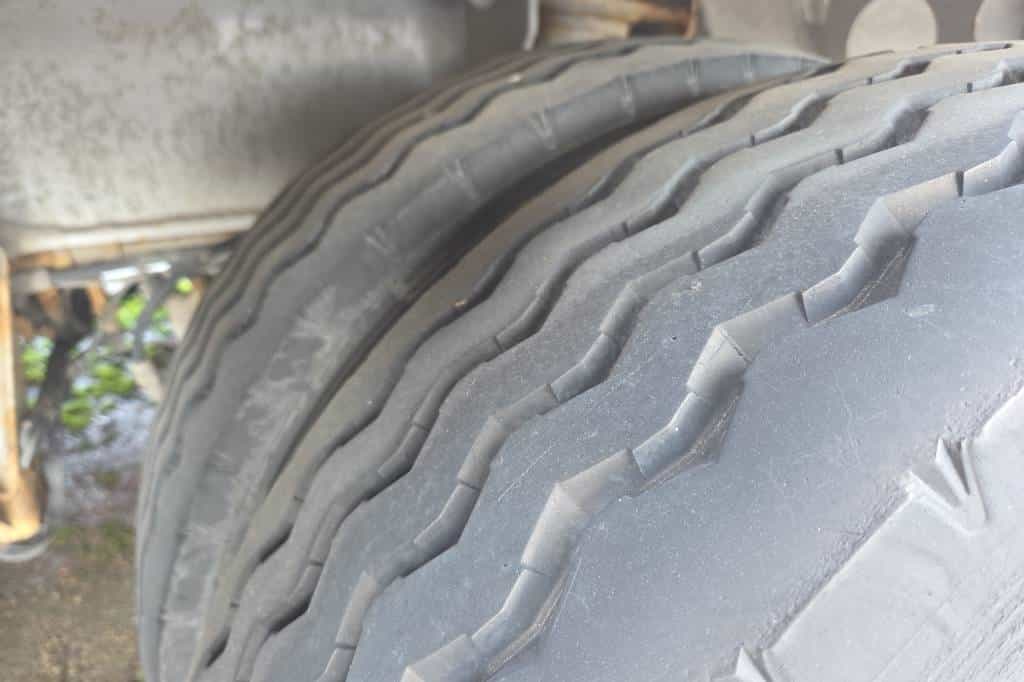

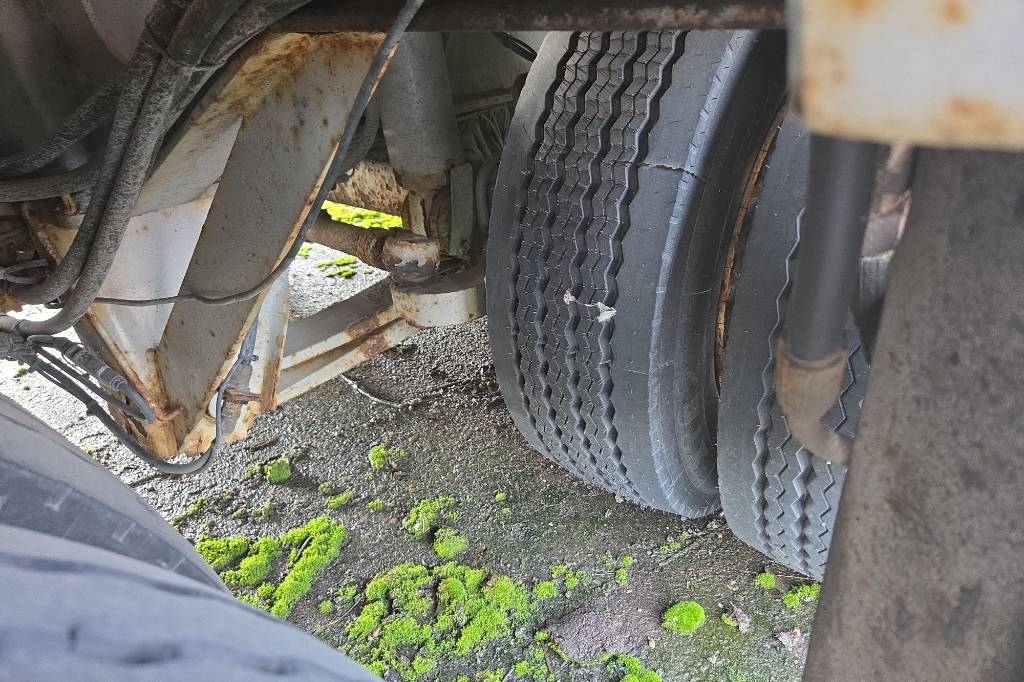

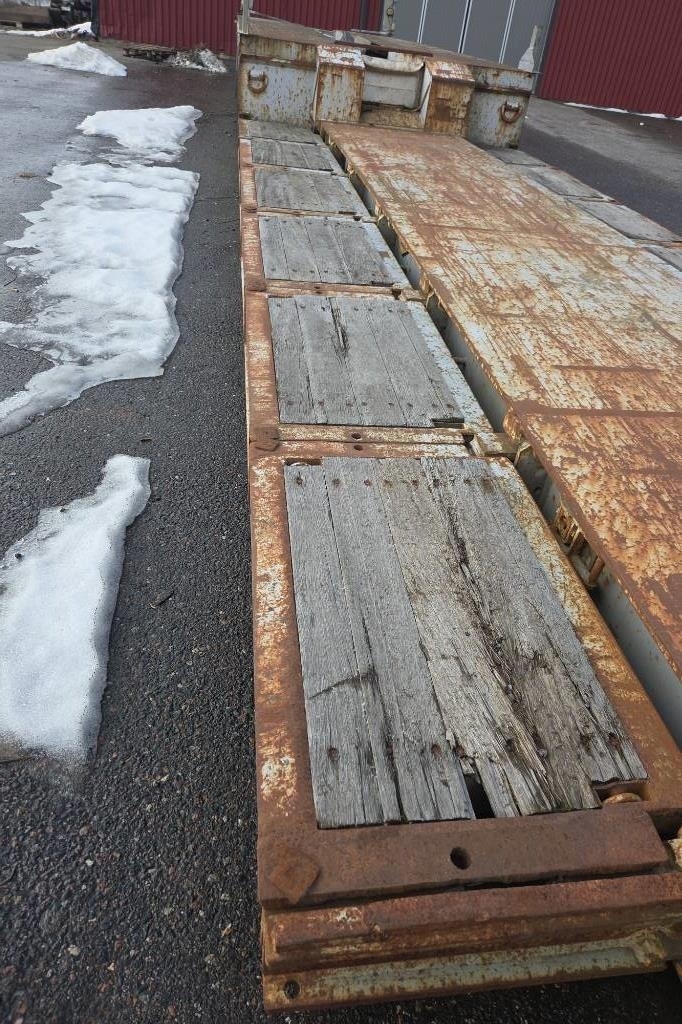

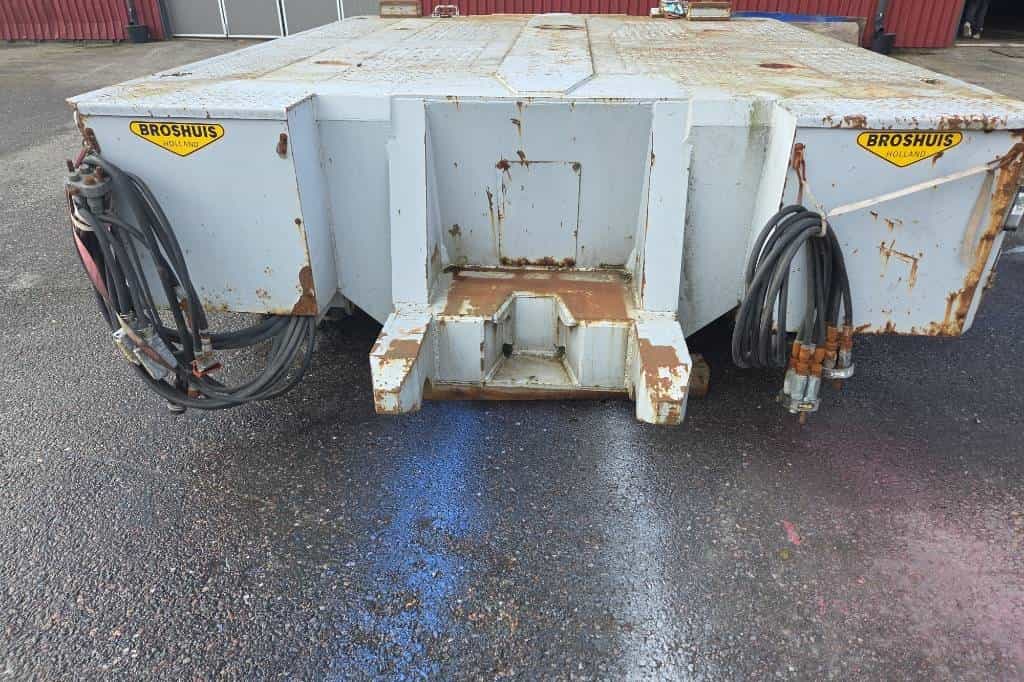

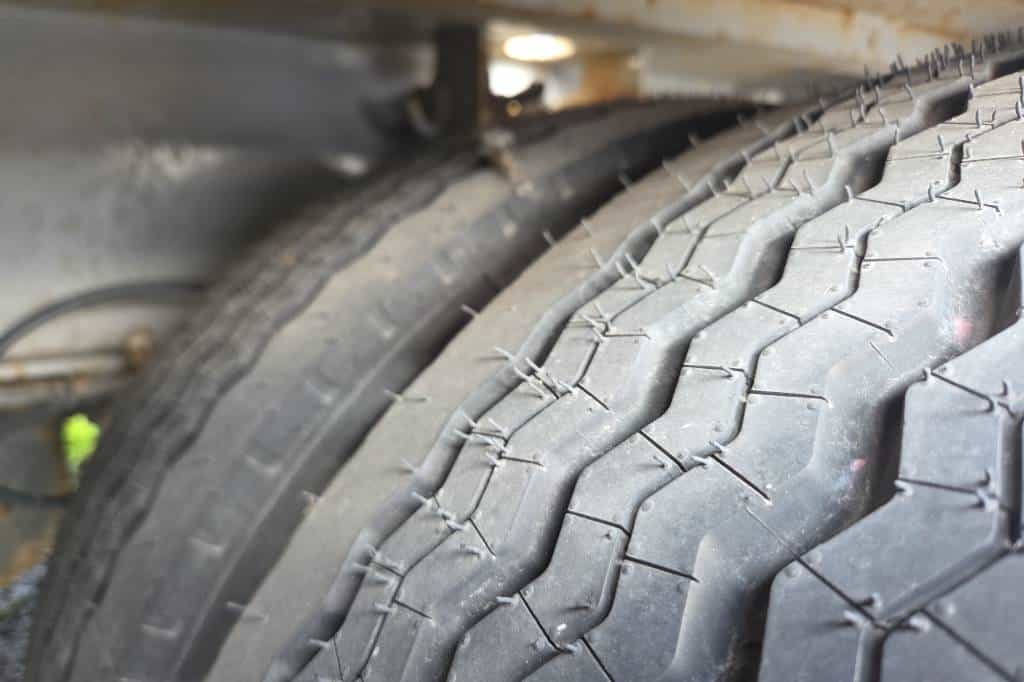

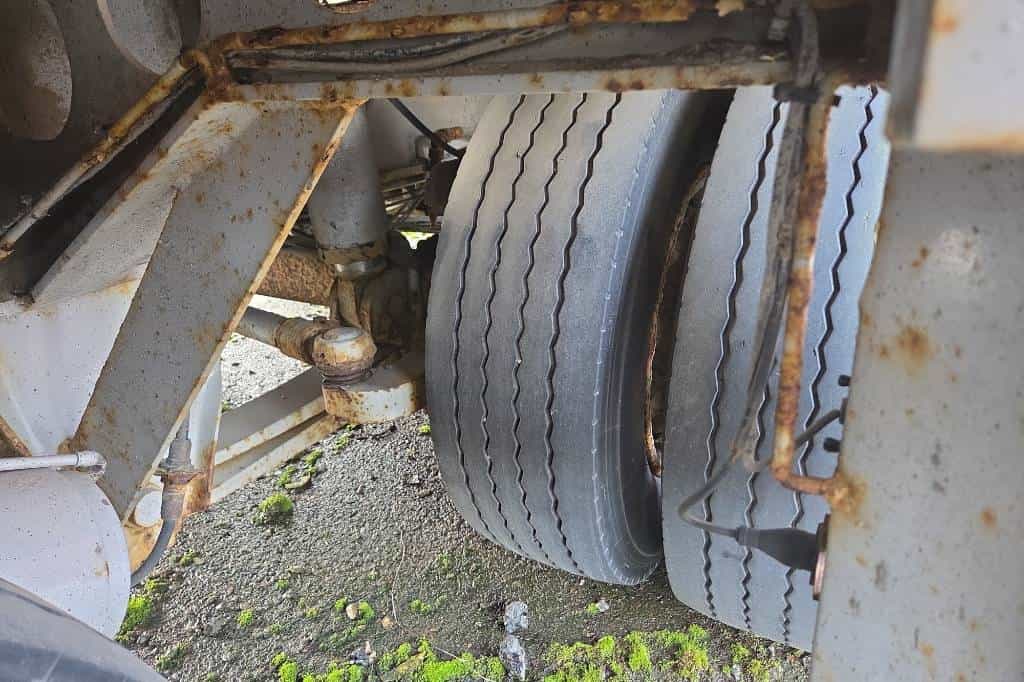

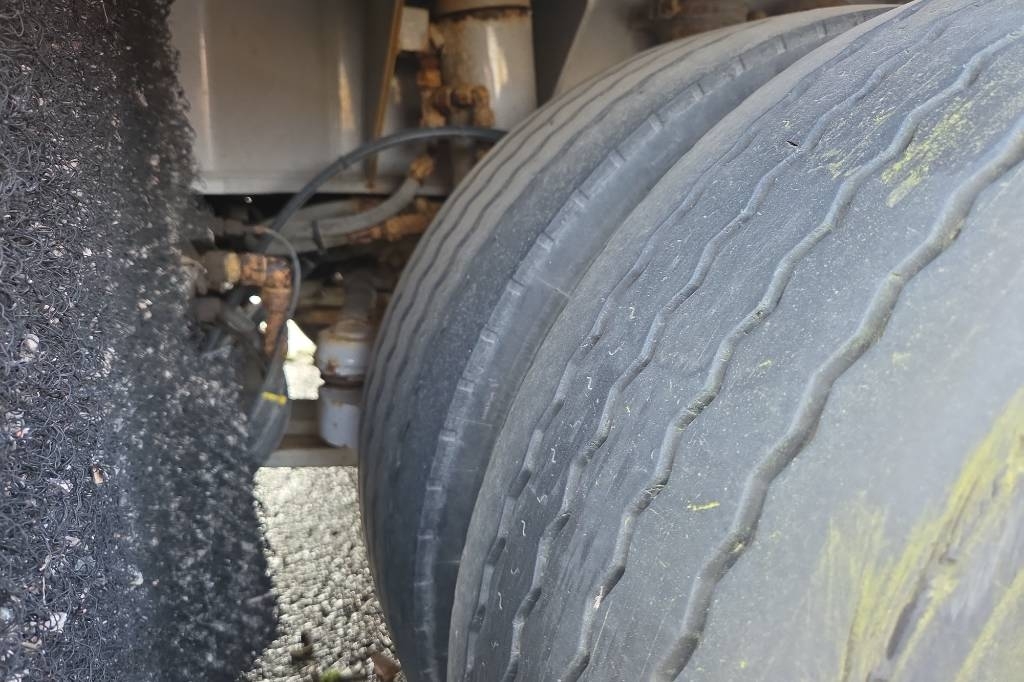

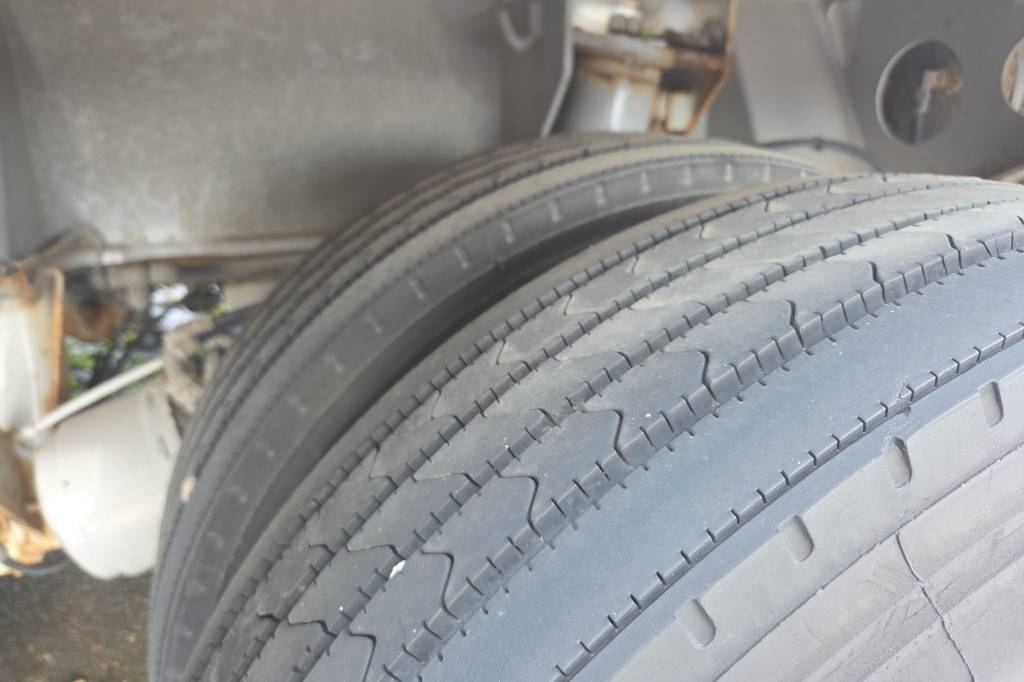

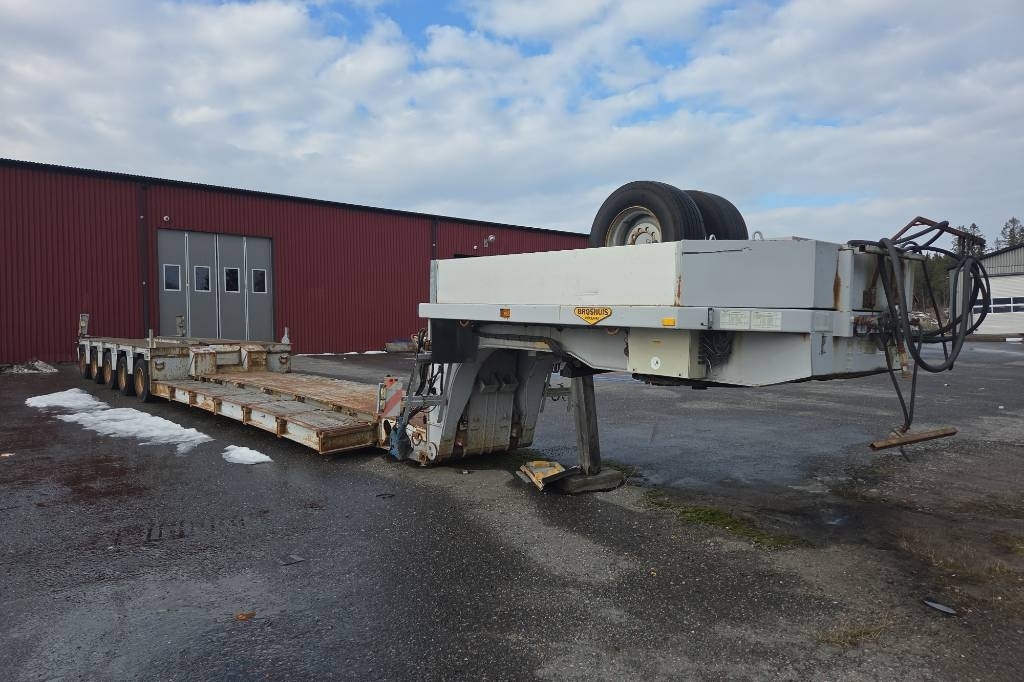

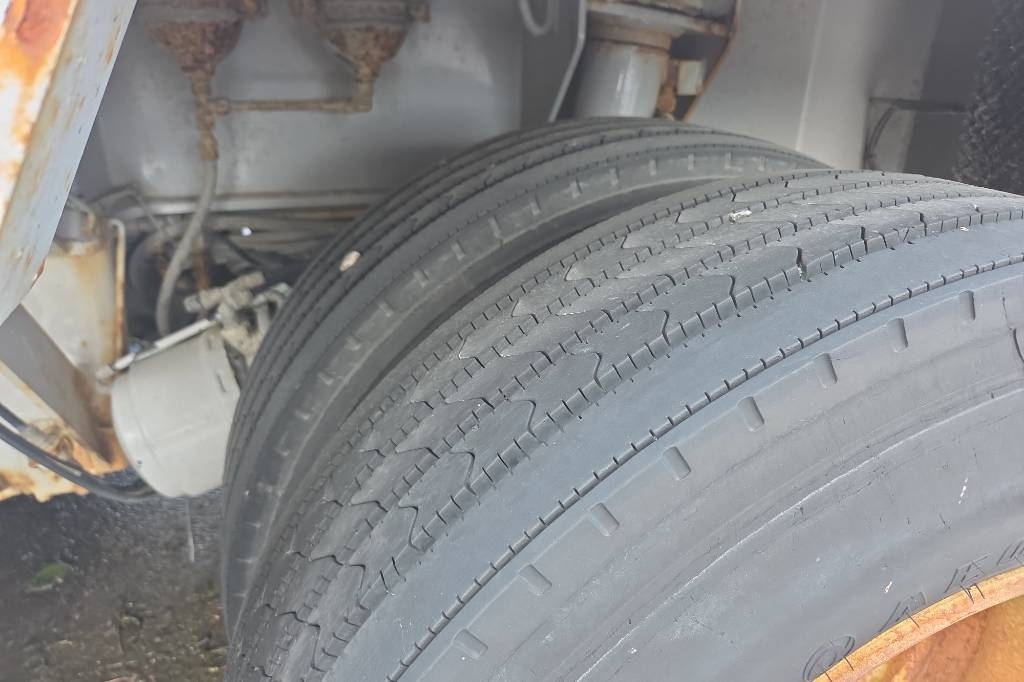

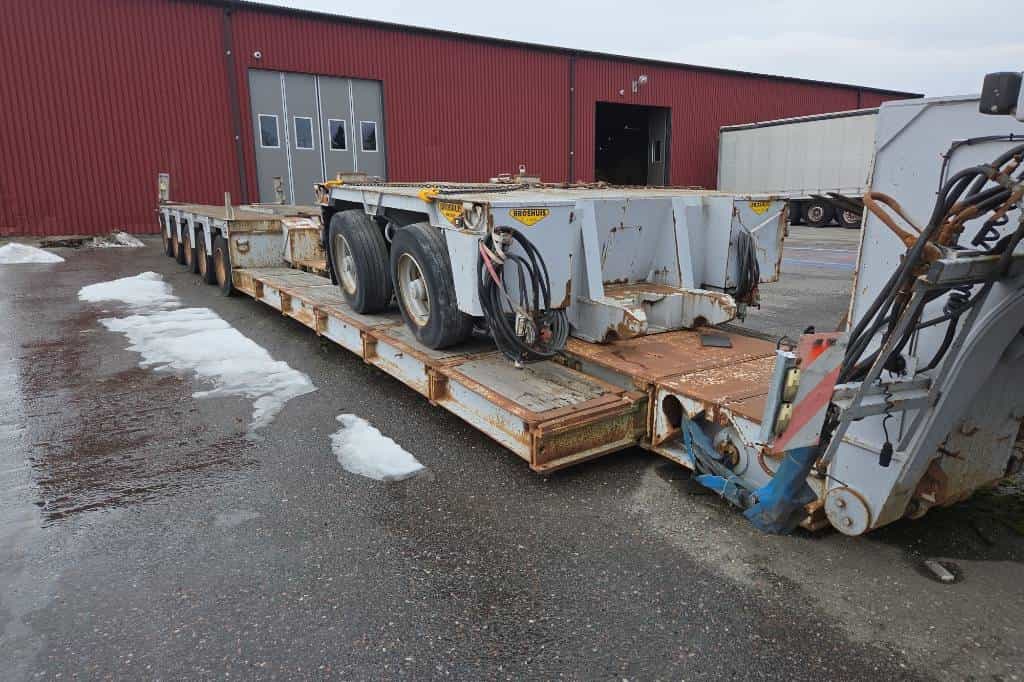

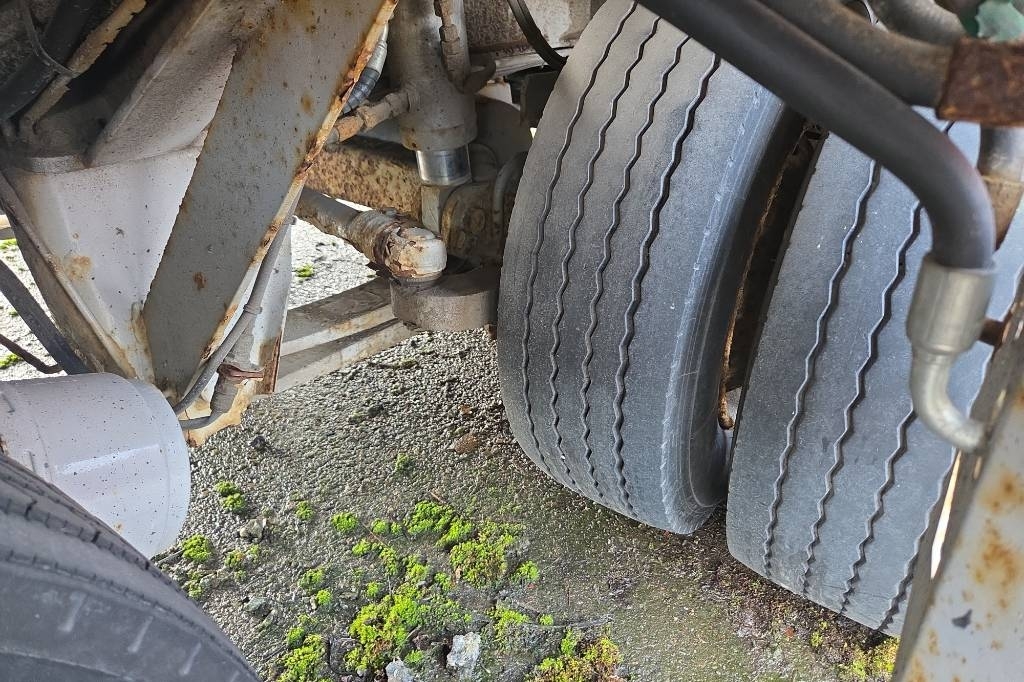

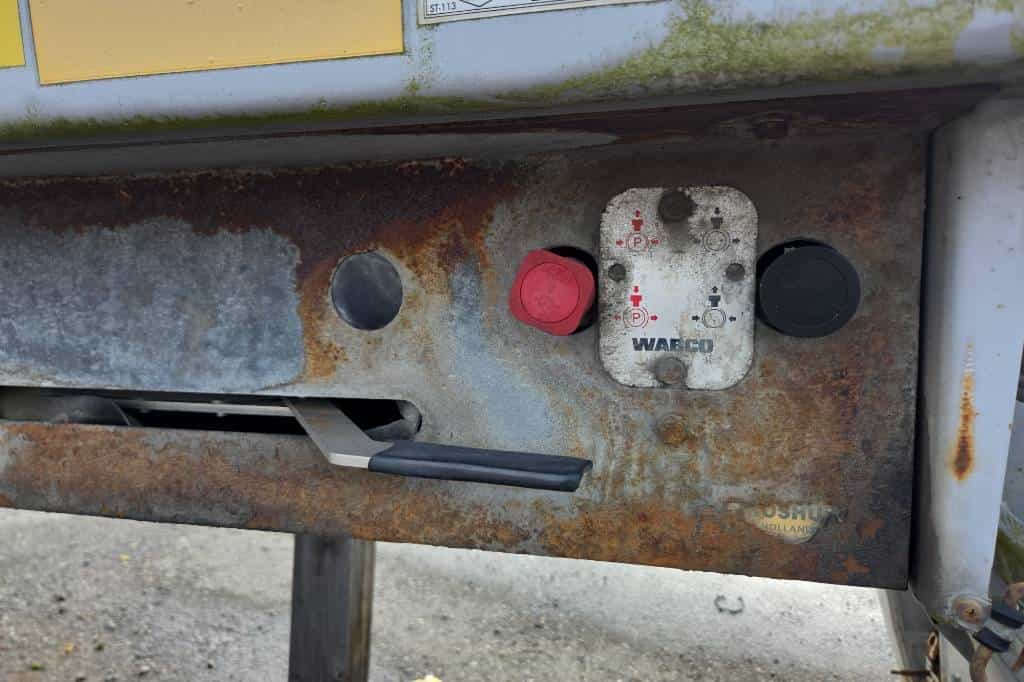

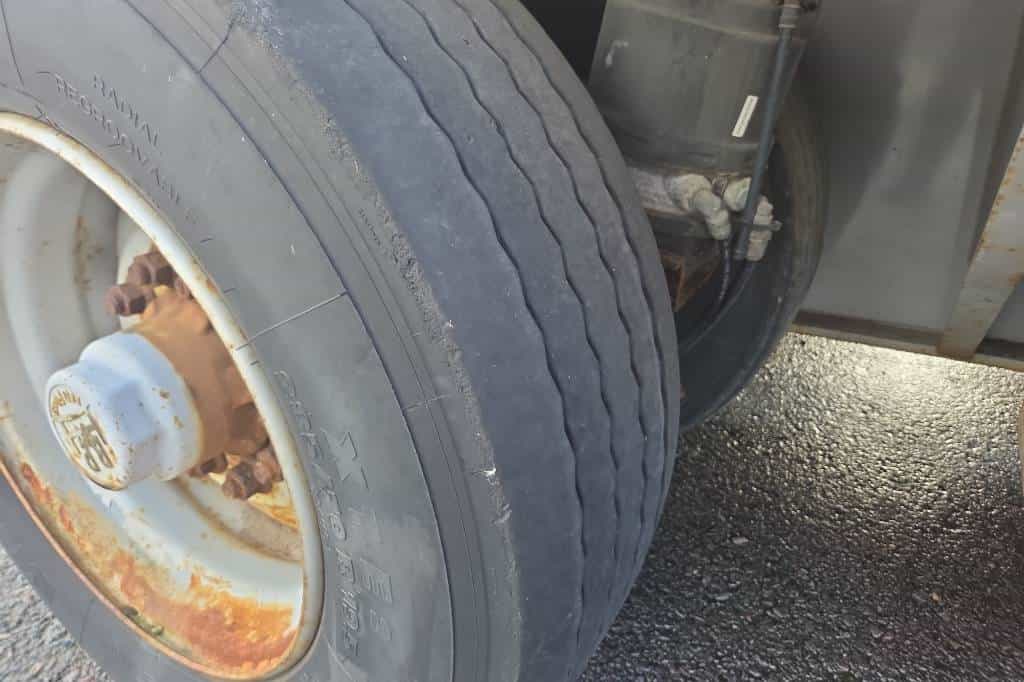

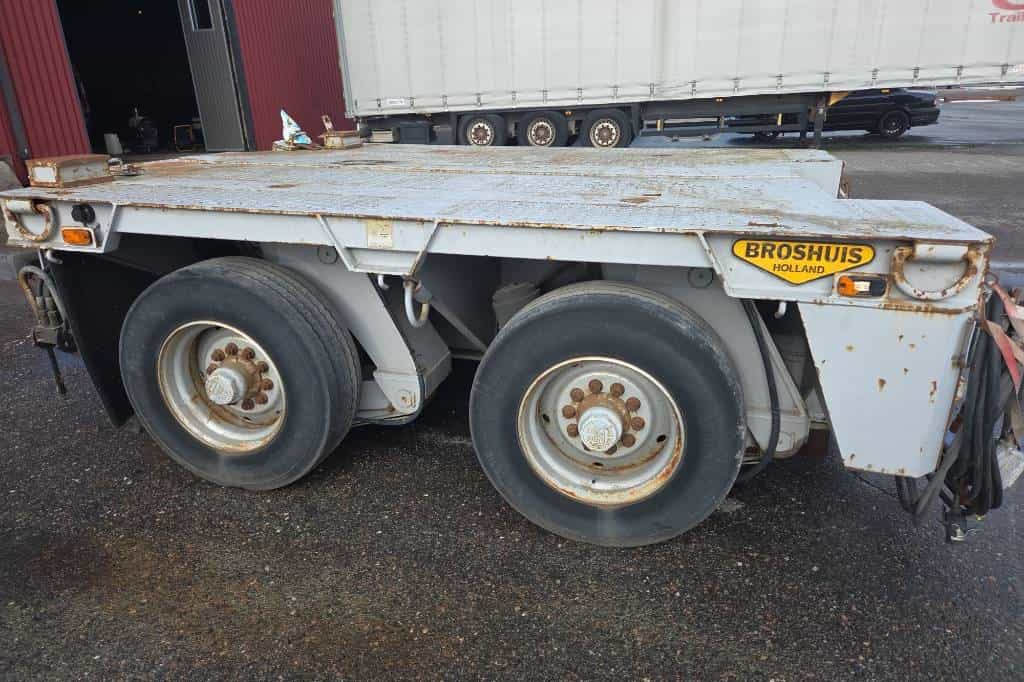

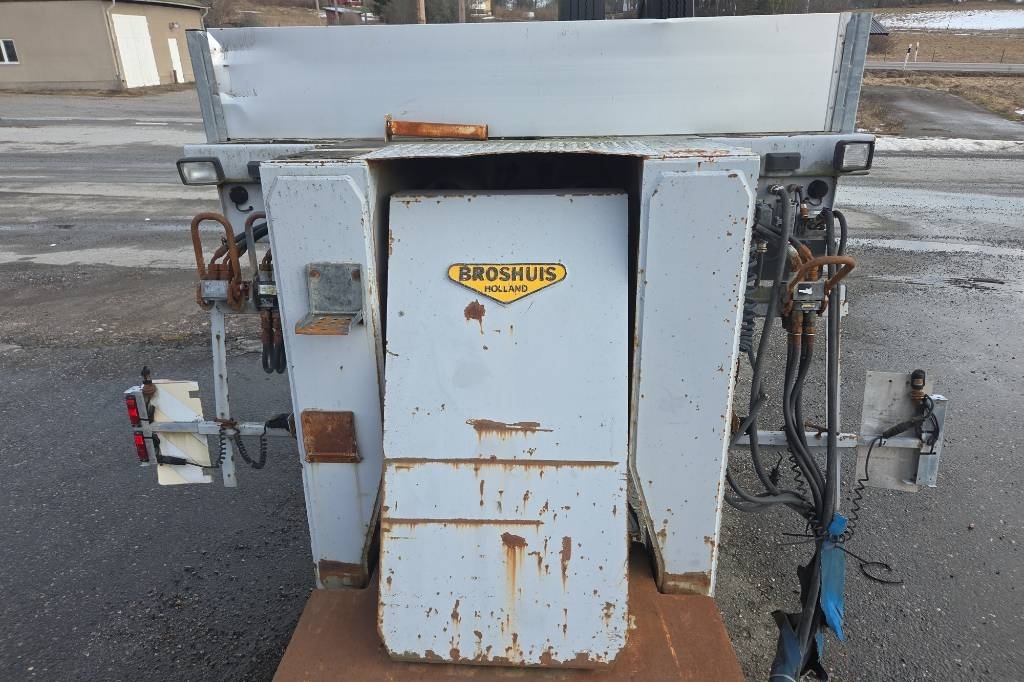

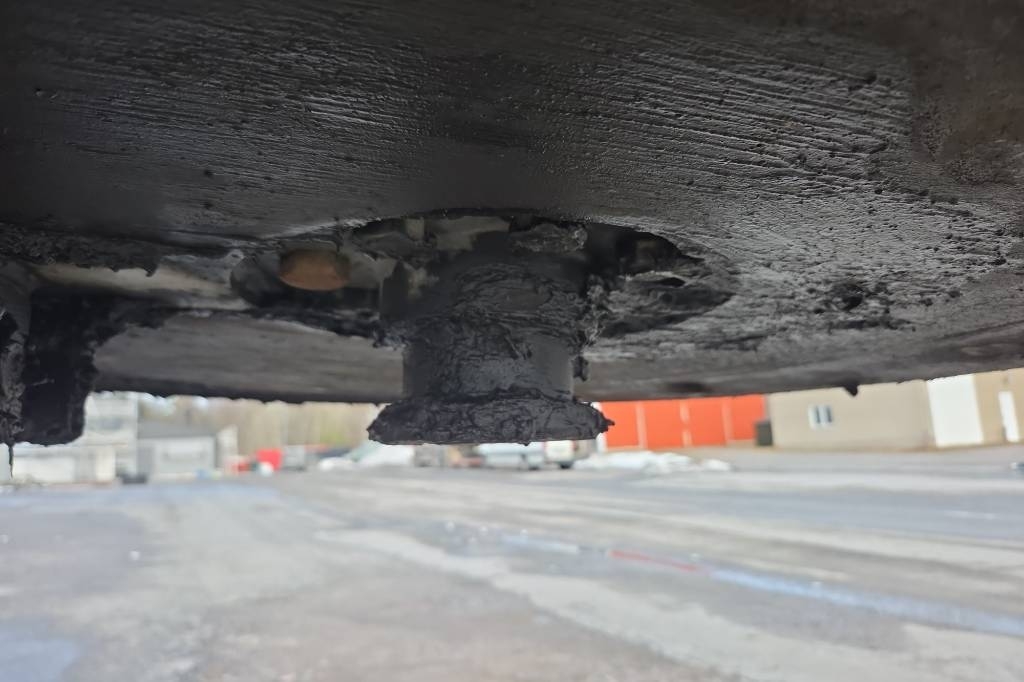

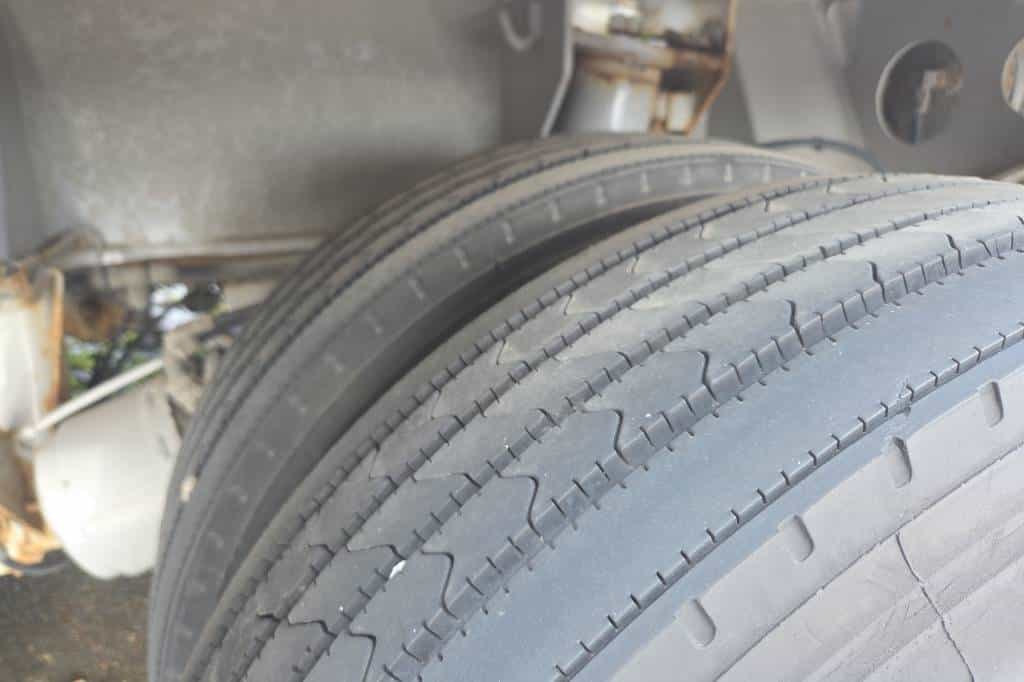

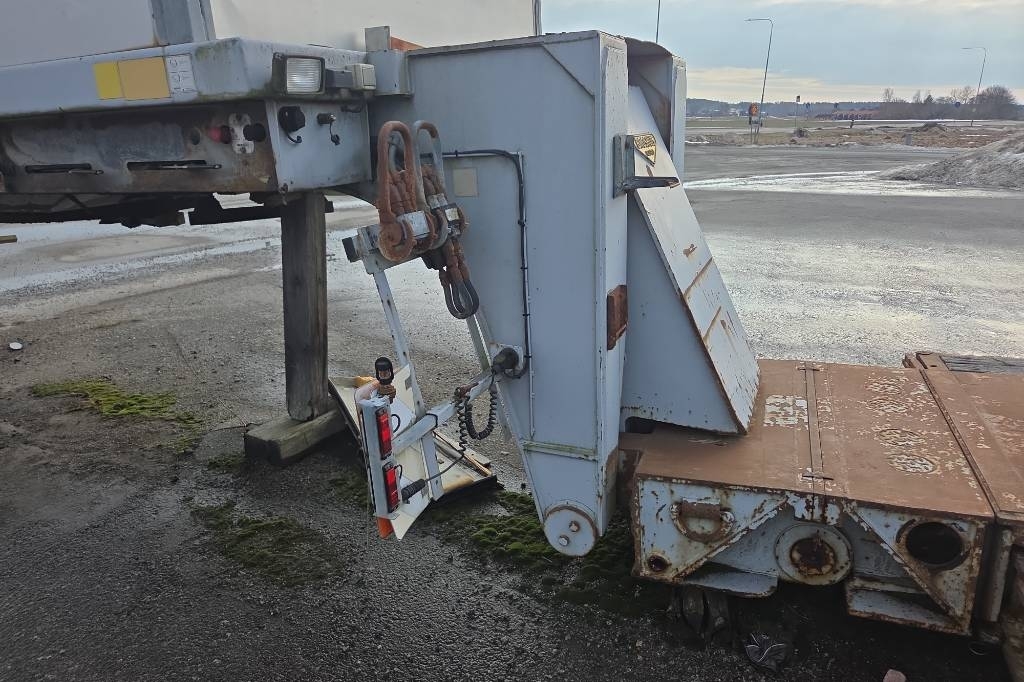

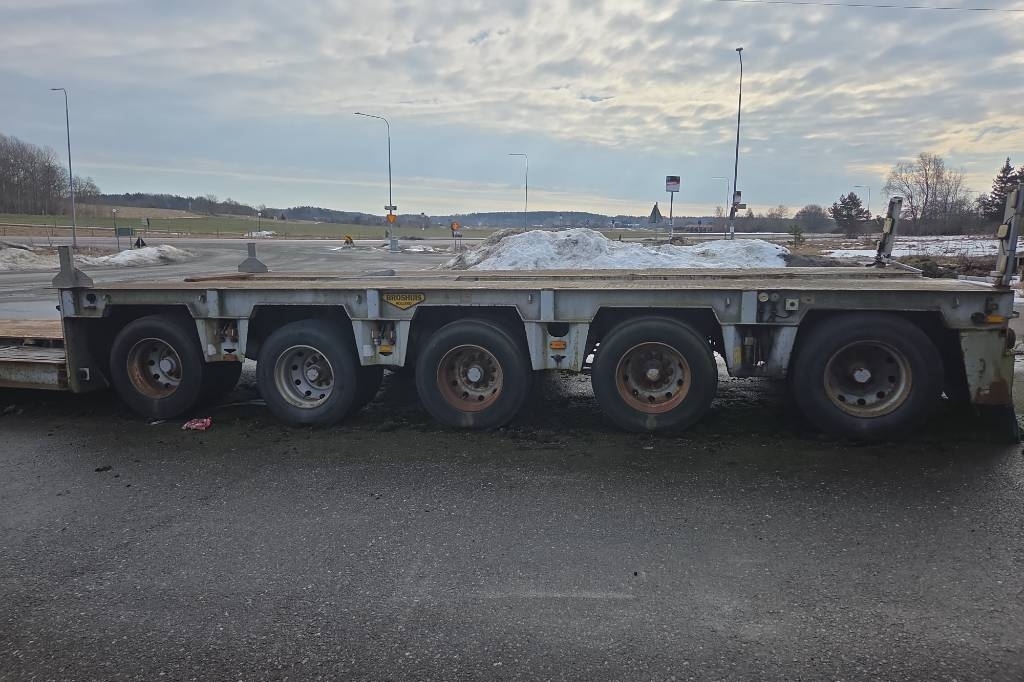

We offer here a unique tralier with a total of 7 axes. BROADHOUSE Model :7DDC-101 Year model 2007 Estimated mileage about 25000 Hydraulic suspension Steering on all axles 8m long table and 6m extension Widenable Tires see pictures 2 axle Dolly that can be placed directly after the gooseneck or before the remaining 5 axles. Information from the Swedish Transport Agency Brake outlet: PRESSURE LIFT Coupling device: Pin Coupling distance, national 20690 mm D-value coupling 202 kN Length22900 mm Width2750 mm DISPENSATION: THE VEHICLE COUPLED TO THE CAR REQUIRES AT 90 DEGREE TURN MORE SPACE THAN 8.5 METERS LANE WIDTH VALID EXEMPTION IF MAXIMUM LENGTH, WIDTH OR WEIGHT ACCORDING TO THE TRAFFIC REGULATION IS REQUIRED FOR THE TRANSPORT ROUTE IN QUESTION THE VEHICLE COUPLED TO A CAR REQUIRES AT LENGTH 23.86 METERS AND 90 DEGREES TURN 11.0 METERS LANE WIDTH NUMBER OF AXLES 7, 5 AXLES SPECIFIED FOR REGISTRATION REASONS THE VEHICLE CONSISTS OF FOUR COMBINATION PARTS; GOOSENECK NO. XL900000J60007100 BOGIE ADAPTER NO. XL900000V60007101 A 4,5 M EXTENDABLE INTERMEDIATE LOAD FLOOR NO XL900000U600007102 FIVE-AXLE REAR END WITH CHASSIS NUMBER XL955H5BX6H007103 WHEELBASE 1,36+9,86+1,36+1,36+1,36+1,36 M WITHOUT BOGIE ADAPTER 5 AXLES, LENGTH 19.65 M, COUPLING DISTANCE 17.44 M SERVICE WEIGHT 27500 KG AXLE SPACING 1.36+1.36+1.36+1.36 M EXTENDABLE 4.5 M WITHOUT INTERMEDIATE FLOOR LENGTH 15.8 M, COUPLING DISTANCE 12.45 M SERVICE WEIGHT 28500 KG, WHEELBASE 1.36+2.84+1.36+1.36+1.36+1.36 M CHASSIS NUMBER LOCATED AT THE REAR, RIGHT FRAME BEAM AT THE FRONT ALL AXLES STEERABLE DIMENSIONS AND WEIGHTS ACCORDING TO NATIONAL RULES BEFORE 2005-01-01 Service weight (actual weight) 36300 kg Maximum load weight 86200 kg Total weight 122500 kg Original total weight 122500 kg Tax weight 28000 kg Axle - 1 Max wheelbase axle 1-2 1360 mm Guaranteed axle/bogie load 40000 kg Axle - 2 Max axle distance axle 2-3 1360 mm Tire size 285/70R19.5 Guaranteed axle/bogie load 25000 kg Axle - 3 Max axle distance axle 3-4 1360 mm Guaranteed axle/bogie load 62500 kg Brokerage assignment! Location: Northern Stockholm Delivery according to agreement. Machine and equipment are sold as shown. We offer financing and help with shipping. For questions or viewing call Johan Braun 072-2392927 +46 72 239 29 27 (WhatsApp)
